PCB Assembly | |

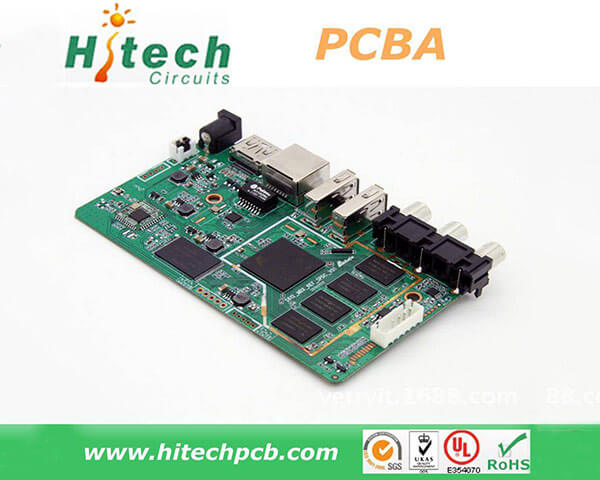

What is PCB Assembly? Pcb Assembly Services | Pcb Manufacturing Services (hitechpcba.com) It’s the step in the manufacturing process in which you populate a blank board with the electronic components needed to make it into a functional printed circuit board. It’s these components that make a board into the circuit that enables an electronic product to function. PCB assembly typically takes place via one of two processes: 1. Surface-mount technology SMT: SMT stands for “Surface Mount Technology“. The SMT components are very small sizes and comes in various packages like 0201, 0402, 0603, 1608 packages for resistors and capacitors. Similarly for Integrated circuits ICs we have SOIC, TSSOP, QFP and BGA. The SMT components assembly is very difficult for human hands and can be time taking process so it is mostly done by automated pick and place machine. 2. Through-hole manufacturing THT: THT stands for “Through hole Technology”. The components with leads and wires, like resistors, capacitors, inductors, PDIP ICs, transformers, transistors, IGBTs, MOSFETS are example. The component has to be inserted on one side of PCB and pulled by leg on other side and cut the leg and solder it. The THT components assembly is usually done by hand soldering and is relatively easy. Printed Circuit Board AssemblyTechniques  | |
| Related Link: Click here to visit item owner's website (2 hits) | |
| Target State: Arizona Target City : SHENZHEN Last Update : Apr 24, 2024 5:47 AM Number of Views: 98 | Item Owner : Leah Contact Email: Contact Phone: 13316844961 |
